Perf Events

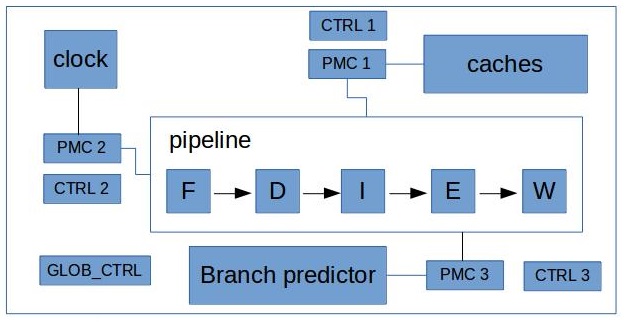

Counter, MSRs - model specific registers

https://easyperf.net/blog/2018/06/01/PMU-counters-and-profiling-basics

Counting vs. Sampling

Counting

- disable counting

- set all the counters to 0

- configure evenst that we want to measure

- enable counting

- run the application

- disable counting

- read the values of the counters

Sampling

- set counter to 0

- enable counting

- wait for the overflow and disable counting when it happens

- inside the interrupt handler capture IP, registers state, etc.

- repeat the process

we set initial value to 0xFFFFFFFF - 0x19999999, where 0x19999999 represent the number of clockticks in 100ms. And in this case we will receive an interrupt after 0x19999999 clocks.



CPL_CYCLES.RING0_TRANS = halt로 진입한 횟수?
     [Number of intervals between processor halts while thread is in ring 0.]



uops_retired.total_cycles = cpu_clk_unhalted.thread = cycles
uops_retired.stall_cycles = cycle_activity.cycles_no_execute
cycle_activity.cycles_no_execute
       [This event increments by 1 for every cycle where there was no execute for this thread]

Summary:
  CLKS = cpu_clk_unhalted.thread = cycles
       [Per-thread actual clocks when the logical processor is active]
  CPI = inst_retired.any, cycles
       [Cycles Per Instruction (threaded)]
  CPU_Utilization = cpu_clk_unhalted.ref_tsc, msr/tsc/
       [Average CPU Utilization]
  Instructions = inst_retired.any = instructions
       [Total number of retired Instructions]
  Kernel_Utilization = cpu_clk_unhalted.ref_tsc:u, cpu_clk_unhalted.ref_tsc
       [Fraction of cycles spent in Kernel mode]
  SMT_2T_Utilization = cpu_clk_thread_unhalted.one_thread_active, cpu_clk_thread_unhalted.ref_xclk_any
       [Fraction of cycles where both hardware threads were active]



Note: HLT instruction != Stall cycle. HLT instructino은 logical core를 halt state로 전환시키는 역할이며, stall cycle은 pipelining에서 발생하는 bubble 횟수임

Note: HLT instruction은 ring 0 privilege 필요.

Note: CPU가 halt state로 만드는 instruction은 HLT instruction, MWAIT instruction 두 종류가 있음



Counts the number of thread cycles while the thread is not in a halt state. The thread enters the halt state when it is running the HLT instruction. The core frequency may change from time to time due to power or thermal throttling.
